YTQS-3-1200 Manual Type CNC Ceramic Cutting Machine
Best manual tile cutter for porcelain from Yongtao! This manual tile cutter can be your mature solution in all processes. Make an order for your manual tiles cutting machine price here!
Product introduction

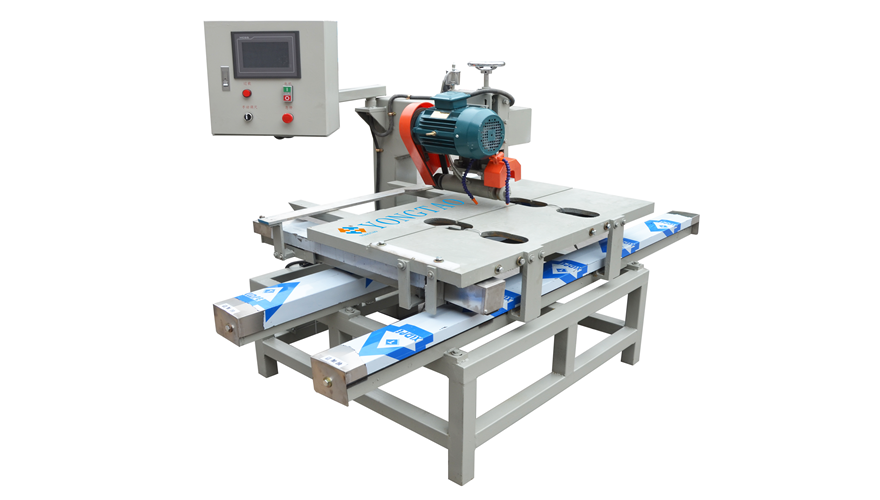

Description of YTQS-3-1200 Manual Type CNC Ceramic Cutting Machine
YTQS-3-1200 Manual Type CNC Ceramic Cutting Machine is the latest manual product researched by Yongtao Machinery in 2016 which is the best manual tile cutter for porcelain.This machine has high precision,reasonable price,the same size of cutting,excellent effect of cutting.This machine adopt oil-immersed guide and slider,stepping motor to drive.It is cheaper than Automatic Continues Cutting Machine,but has the same level of precision.It is the ideal machine for the new ceramic deep process factory.
CNC Ceramic Tile Cutting Machine:
Parameter of YTQS-3-1200 Manual Type CNC Ceramic Cutting Machine
We provide you with competitive manual tiles cutting machine price.
Machine specifications
| Nos. Of cutting head | 1pc |
|---|---|
| Dia. Of blade | Φ110-150mm*20mm |
| Main motor power | 3kw |
| Speed of conveyor | 1.5m/min |
| Max. Cutting width | 1200mm |
| Max. Cutting thickness | 20mm |
| Total power | 3.37kw |
| Size of machine | 2.2*1.8*1.8m |
| Weight | About 300kg |
| Water consumption | 100L/min |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
Bring the material. We’ll plan the process.
Send your material, maximum dimensions and production target. We will help you confirm the suitable machine configuration.
