Stone Polishing Machine

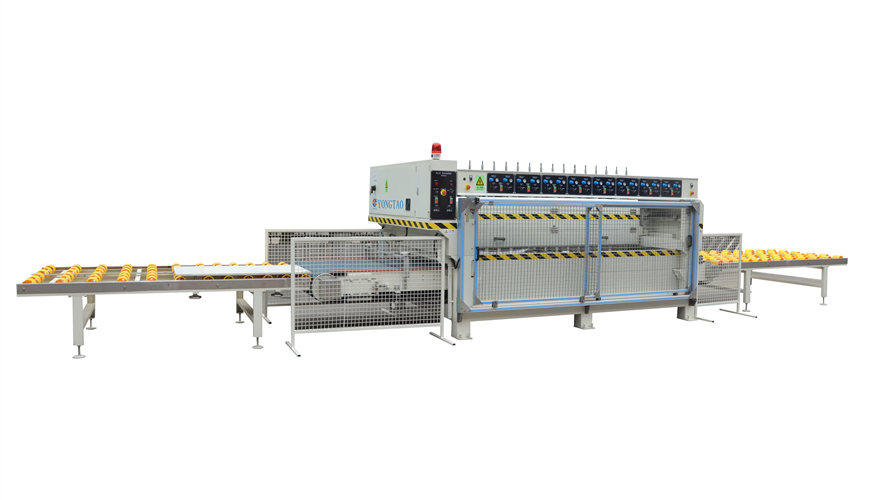

YSU-1200 16 Head Stone Polishing Machine

Yongtao 16 head stone polishing machine, can polish stone, marble, quartz stone, granite, mosaic surface, 8-20 head marble polishing machine can be customized

YSU-1200 16 Head Stone Polishing Machine
PRODUCT DETAILS

Product introduction

Description of YSU-1200 16 Head Stone Polishing Machine
This stone polishing machine is the earliest customized production of China Yongtao Machinery according to the needs of customers. The surface polishing treatment of large plates has the characteristics of high processing efficiency and large output. It has simple operation and meets international standards. , It adopts safety protection device and safety mark for loopholes, which can be customized according to requirements. It is a very easy-to-use stone machine for stone processing plants and polishing plates.

YSU-1200 16-head stone polishing machine, which can polish the surface of marble, stone, quartz stone, granite, and also can be used for the surface polishing of stone mosaics, as well as some small pieces of stone, the surface polishing treatment, the maximum processing is 1.2 meters If you need a larger plate polishing, you can use a large-size marble polishing machine.

Marble polishing machine:

Marble polishing machine

This stone polishing machine has 16 grinding heads, and each polishing grinding head is equipped with a polishing pad, usually numbered 50#, 150#, 300#, 500#, 1000#, 1500#, 3000#, 6000#, etc. Different grinding head meshes have different polishing effects, and for different materials, the choice of grinding heads is also different.


Yongtao Machinery is the largest stone machinery manufacturer in China, producing a variety of models of stone polishing machines, including stone edge polishing machines, stone Flat polishing machines, stone bevel polishing machines, stone round edge polisher, these stone machinery can be customized The processing size you want can meet all your stone processing needs.


Parameter of YSU-1200 16 Head Stone Polishing Machine



TECHNICAL DATA

Machine specifications

Conveyor belt1220mm
Nos. ofpolishing head16pc
Diameter ofpolishing padΦ150mm
Nos. ofpolishing motor8pcs
Motor power of polishing head4kw
Motor power of swing3kw
Motor power of conveyor belt3kw
Polishing speed0.5-2.5m/min
Max polishing thickness50mm
Max polishing width1200mm
Total power36.1kw
Air consumption40L/min
Water consumption350L/min
Dimension of machine5.3m*2.25m*1.85m
WeightAbout4500 kg

Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
